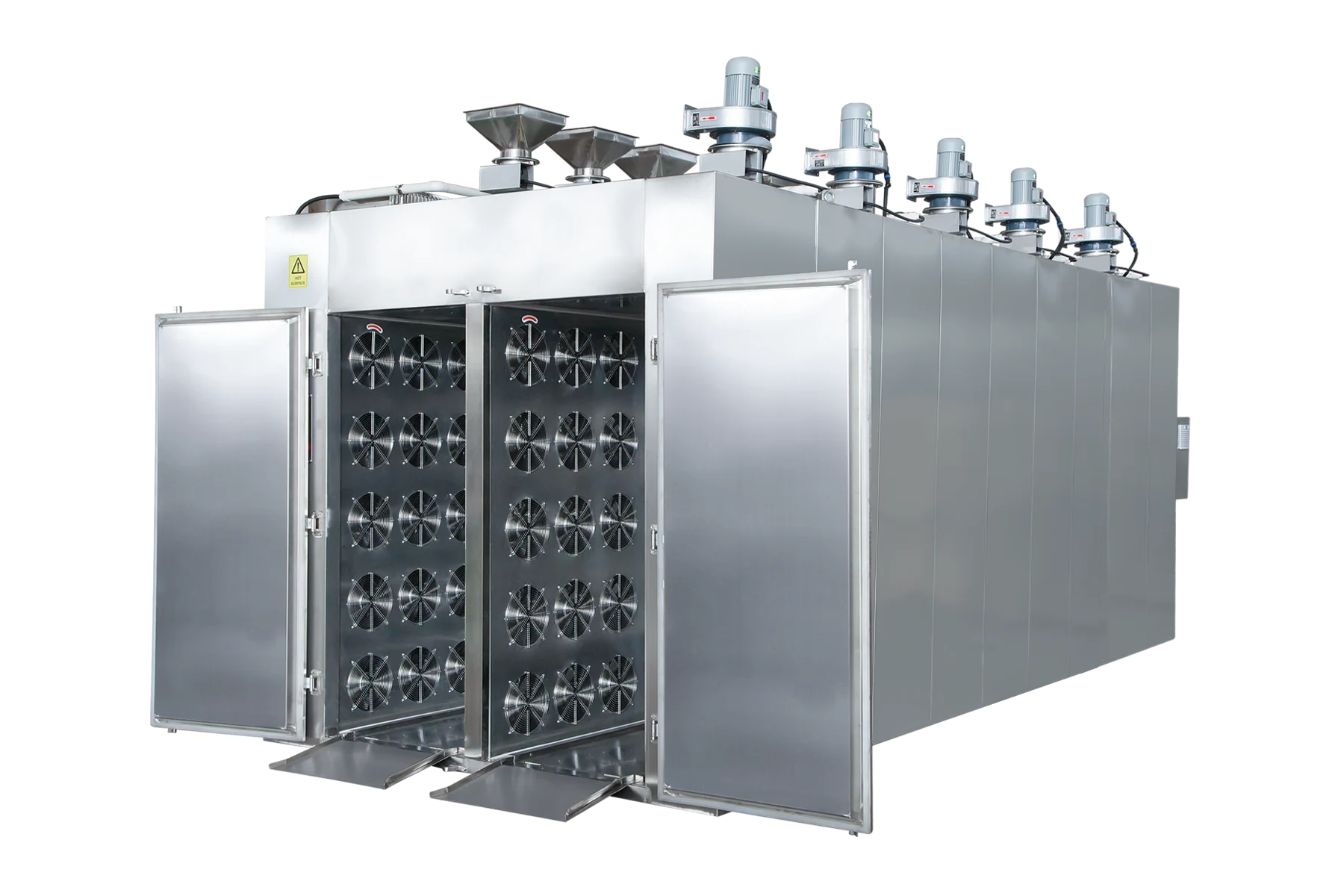

Industrial Dehydrators

10 Trolley / 300 - 600 Tray / 88.3 - 176.6m² Total tray area

start
From

$ 103,995

Now

$ 103,995

Was

Save

What you get:

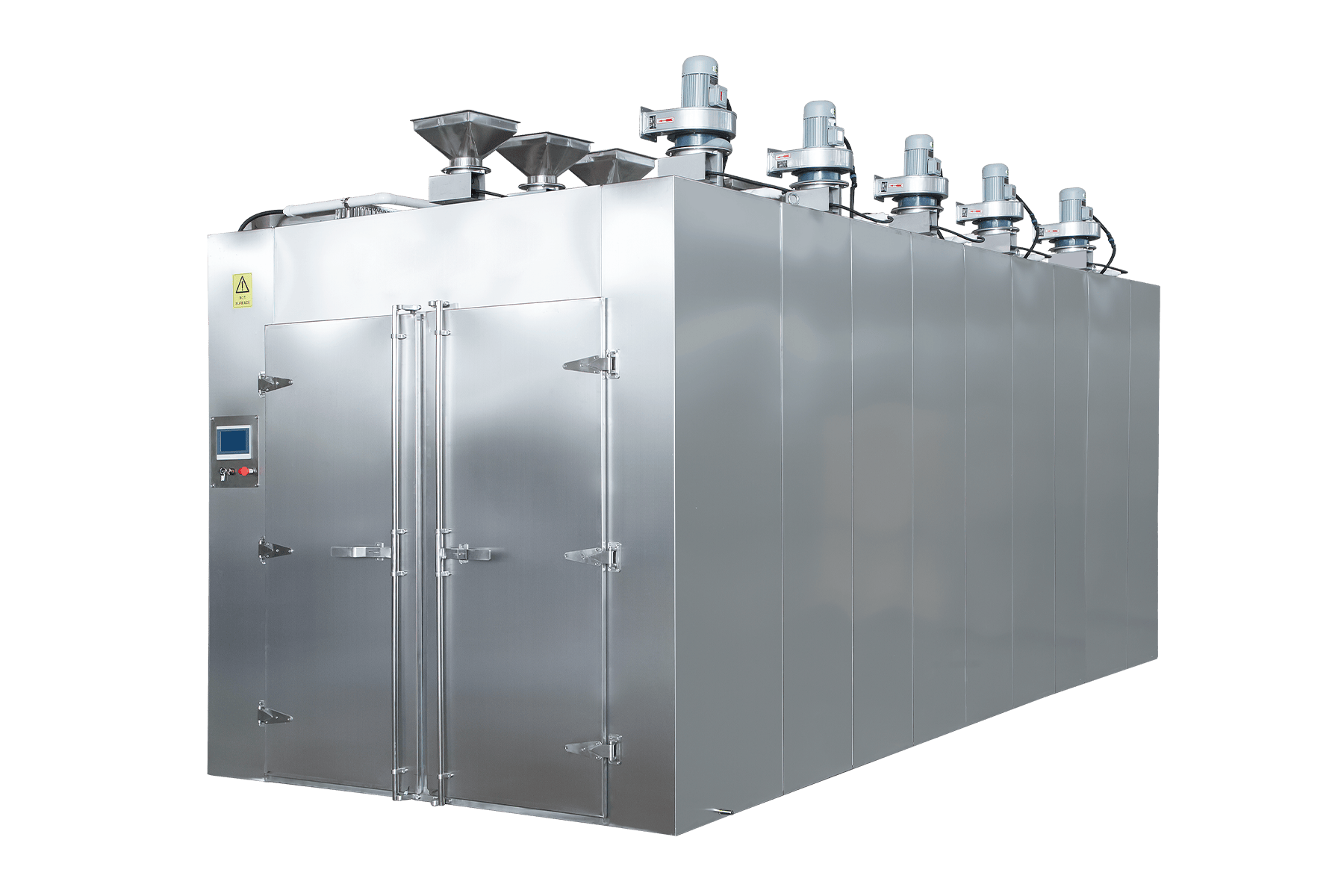

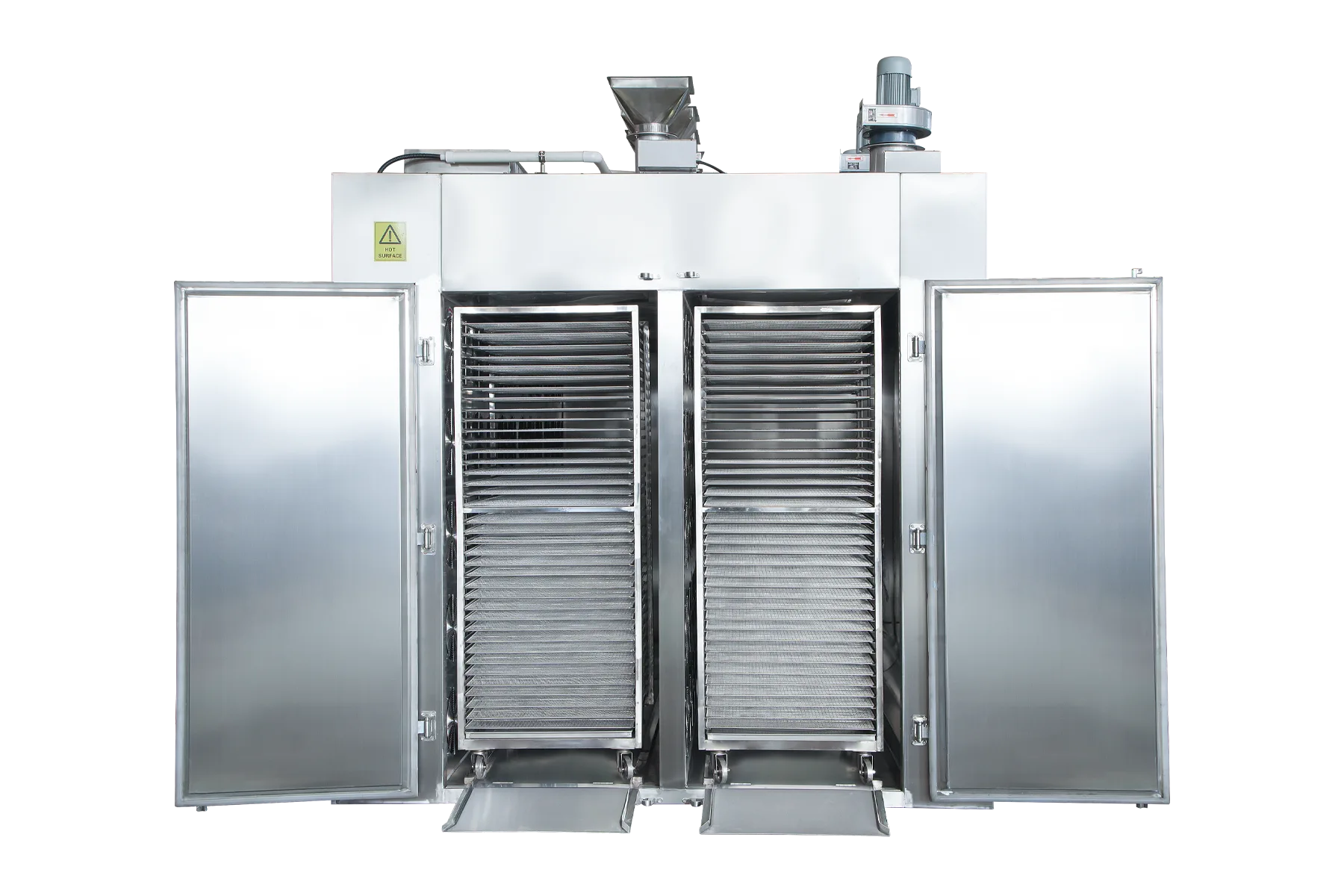

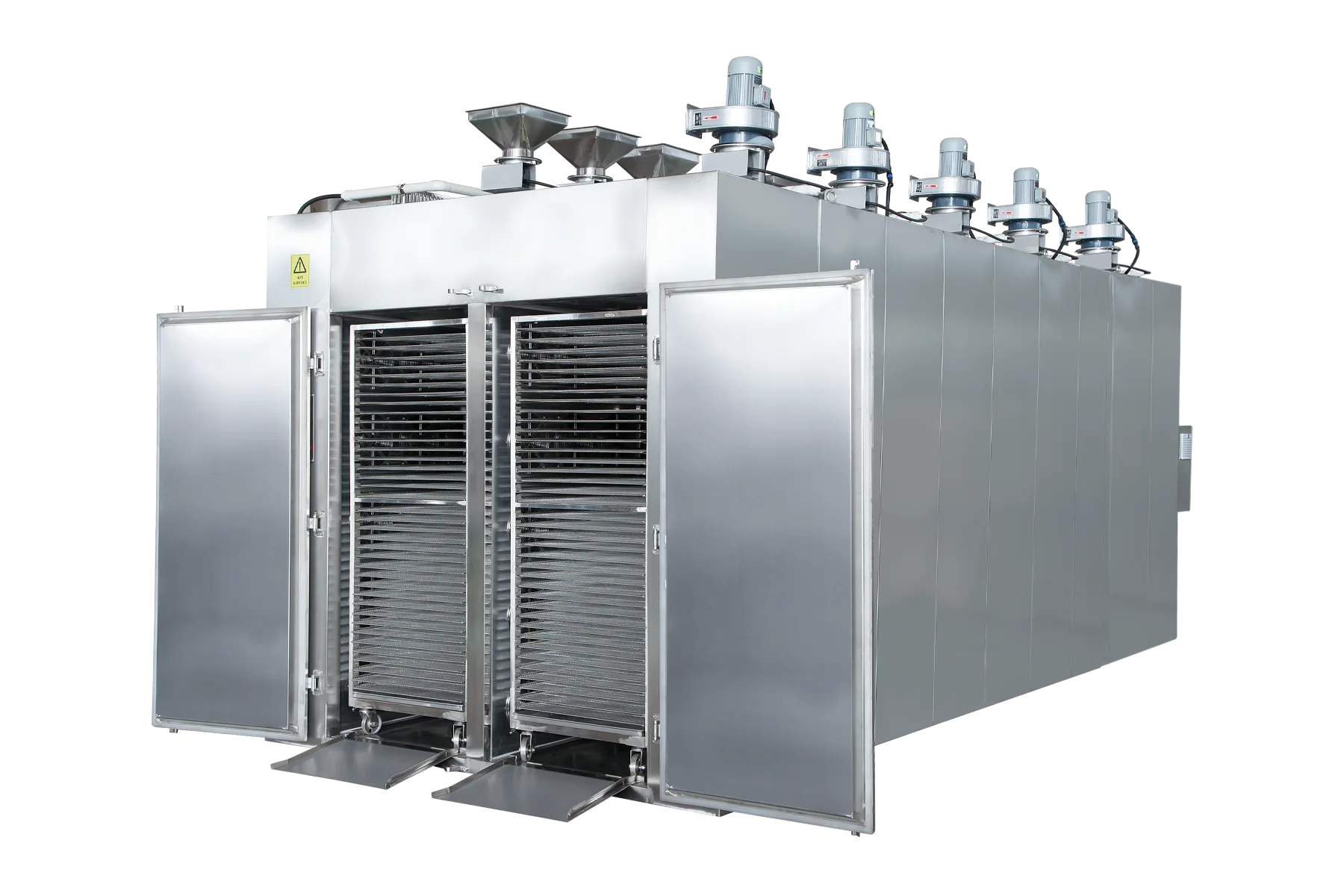

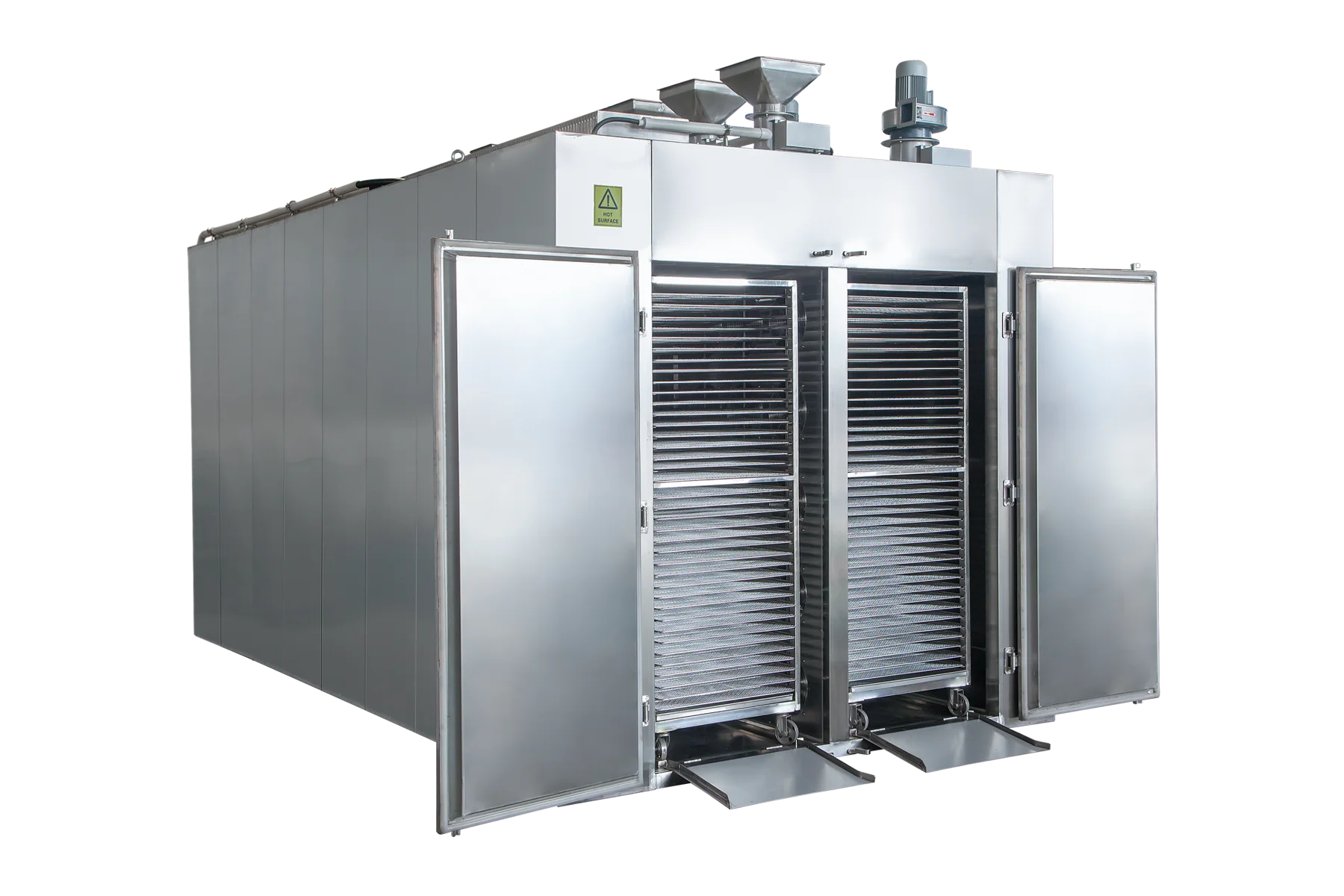

Our IU-10 Industrial model dryer oven is manufactured entirely from 304 Food Grade Stainless steel and can be operated 24 hours a day, 7 days a week, 365 days a year! Housing a robust design, this machine has been specifically engineered for accurate, high volume production. With 64x46cm trays, and our high-efficiency forced air convection system, you can dehydrate your product at industrial rates. This model comes with a 9999-hour timer and adjustable temperature of 0-150 degrees Celsius. Offering a limited 63.6kW power draw, this highly efficient model pulls up to 50% less energy than other models on the market, boasting faster dry times. With a choice from (300-600) 304 Food Grade mesh, fine mesh, perforated and pan Stainless Steel trays, we provide a surface for all types of dehydrating conditions. Perfect for fruits, nuts, jerky, biltong, vegetables, and more.

Be quick there is only:

In local stock

Free Shipping CAN wide

Satisfaction Guarantee - 30 Day Return Policy

Finance Options Available, same day approval

Daniel Strath

Industrial sales Manager

Speak Directly With the Experts

No items found.

No items found.

No items found.

16 Tray / 2.56m sq tray area img1

No items found.

Free Shipping CAN wide

Free Shipping across AUS

Free Shipping CAN wide

3 Year Commercial Warranty

Quick & easy Finance Available

Free Shipping across AUS

3 Year Commercial Warranty

Quick & easy Finance Available

Product specs

Download User Manual

Model IU10	STANDARD SPECIFICATIONS
Max Power Usage	63.6 kW
Avg Power Usage	28-30 kW
Voltage / Frequency	3-Phase / 50-60Hz
Temperature Range	Ambient to 150°C
Timer	0 - 9999 Hours
Timer Function Required	No
Total Tray Area	88.3 - 76.6 m²
Total Trays	300 - 600 trays
Tray Dimensions	460mm x 640mm
Space Between Trays	40 - 80 mm
Total Trolleys	10
Machine Weight	3100 kg
Trolley Dimensions (W x H x D)	930 x 1450 x 645 mm
Overall Dimensions (W x H x D)	5200 x 2200 x 2500 mm
Total Airflow	27200 m³/hr
Material	Double walled industrial-grade 304 stainless steel. Insulated with high density aluminium silicate cotton.

10 Trolley / 300 - 600 Tray / 88.3 - 176.6m² Total tray area

Download User manual

10 Trolley / 300 - 600 Tray / 88.3 - 176.6m² Total tray area

DOWNLOAD SPEC SHEET

10 Trolley / 300 - 600 Tray / 88.3 - 176.6m² Total tray area

Download tech drawing

Convective heat transfer

Convective heat transfer, often referred to simply as convection, is the transfer of heat from one place to another by the movement of gases or fluid. Although often discussed as a distinct method of heat transfer, convective heat transfer involves the combined processes of unknown conduction (heat diffusion) and advection (heat transfer by bulk air flow).

Industrial Dehydrator Convective heat transfer

Industrial Dehydrator Energy Saving Technology

ENERGY SAVING PATENTED TECHNOLOGY

Using our patented Power-Throttling Technology, these units will not use their full power rating. Instead, they will adjust according to the temperature set for the chamber. Energy efficiency is increased from a traditional drying oven due to this patented design, becoming 35~45% more efficient.

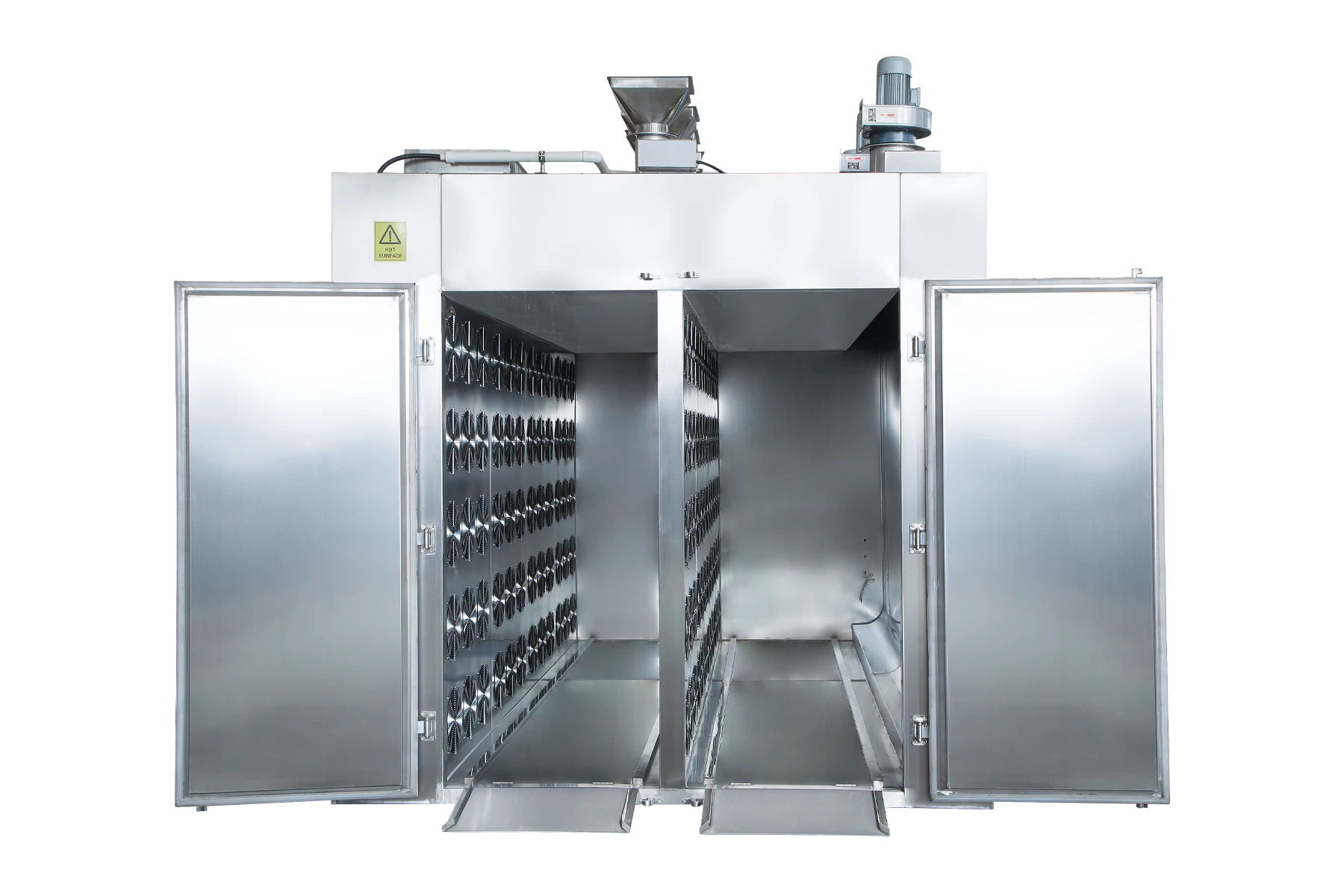

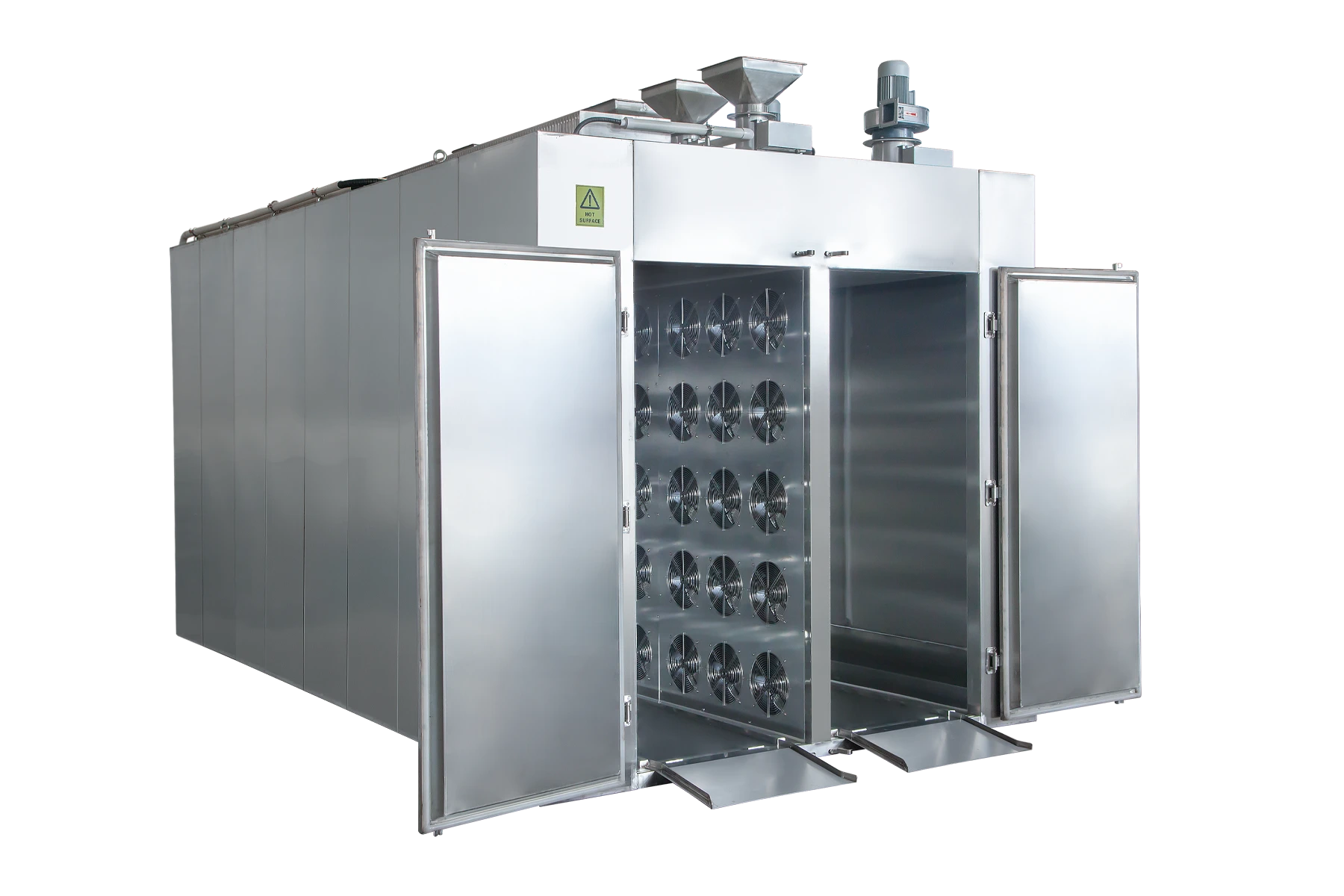

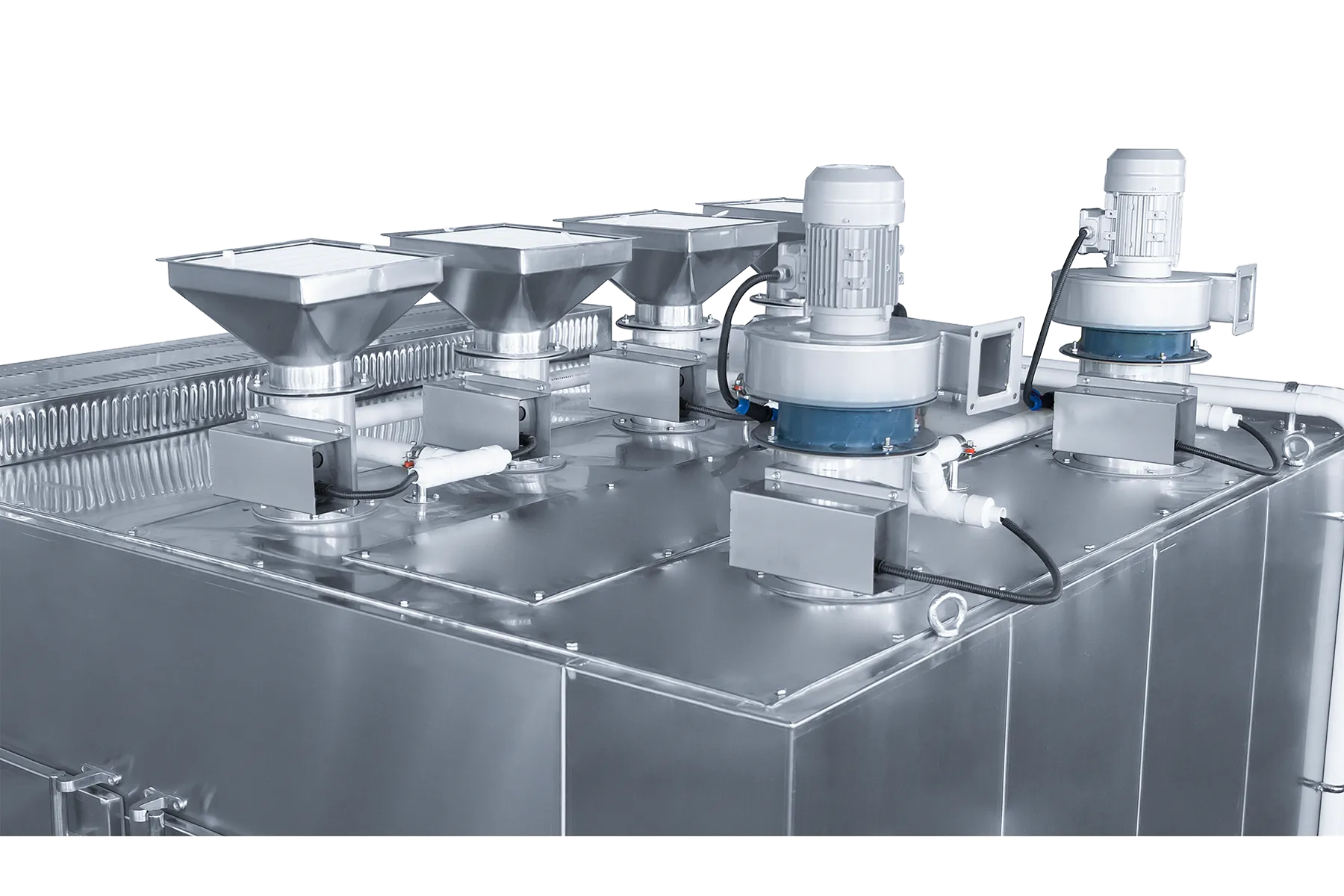

INTAKE FANS

Our hot air circulation system adopts a uniform and efficient airflow throughout the unit. The wind source is driven by the circulating blower, which forces the air through the heating coils, where it is then taken into the oven’s inner chamber. The used moist air is then sucked back into the air duct to be expelled and the hot air recirculated.

Industrial Dehydrator Intake fans

Why choose a benchfoods dehydrator?

Here is a number of reasons we can’t be compared with the rest

COMMERCIAL GRADE QUALITY

Our entire product line is commercial grade stainless steel inside and out. Built for the demand of ongoing commercial use. These units are easy to clean, maintain, and most important food safe.

99 hour timer

Designed for all products and industries in mind, our 99-hour timer will cover anything you might need to dehydrate for more than a full day of drying time.

30-90°C PRECISION THERMOSTATS

Get the quality outcome you're looking for with our precision thermostats.
Outstanding temperature control and temperature hold anywhere from 30-90°C.

DOUBLE-WALLED STAINLESS STEEL

Double-walled stainless steel allows for better energy efficiency by keeping the heat where it belongs, inside the drying chamber. This feature also keeps the sides of the machine cool to touch.

TECH FEATURES

HORIZONTAL AIR FLOW

HORIZONTAL AIR FLOW

No need to rotate trays or flip product mid-cycle. Our units use horizontal airflow technology to create even drying across all trays every time.

TIME AND TEMP MEMORY

TIME AND TEMP MEMORY

The unit remembers the last time and
temperature setting from your previous batch making it easier and quicker if repeating the same recipes in future batches.

TEMPERED GLASS PANEL

TEMPERED GLASS PANEL

These completely food-safe glass panels allow you to operate the controls while wearing food safety gloves. Cleaning them is super easy and they can withstand impacts of 10,000 pounds per square inch, making them perfect for the commercial environment.

AMBIENT AIR MODE

AMBIENT AIR MODE

If you desire to dry your product using fans only and no heat, simply set the temperature to 00 on the control panel. This can be great for drying products such as herbs, biltong and some seafoods.

Machine highlights

POWERFUL FULLY SEALED MOTORS

POWERFUL FULLY SEALED MOTORS

Waterproof fan motors feature top-grade dual ball bearings and pure copper coils with an ideal dehydrating motor speed of 1800rpm.

GLASS OBSERVATION WINDOW

GLASS OBSERVATION WINDOW

Our heat-resistant tempered glass windows are extremely strong and don’t let any heat escape. Able to withstand an impact of 10,000 pounds per square inch. They can also withstand temperatures of up to 260°C.

PREMIUM FOOD-GRADE TRAYS

PREMIUM FOOD-GRADE TRAYS

Our food-grade 304 stainless steel trays are made for the ongoing demand of the commercial food environment. They are easy to clean & maintain, dishwasher safe and are non-corrosive.

STRONG CASTOR WHEELS

STRONG CASTOR WHEELS

Our lockable caster wheels make moving the unit into place and moving them for cleaning extremely easy. Once you get the unit where you want it to stay, simply lock it into place.

Non-Stick Dehydrator Mats

FDA-APPROVED FOOD-SAFE NON-STICK MATS
TEMPERATURE RESISTANT, WATER REPELLENT, & 100% NON-STICK REUSABLE, DURABLE, & EASY TO CLEAN

Total Mat Area	0.2m²/tray
Dimensions	40cm x 40cm
Material	Premium non-stick, FDA-approved food-safe, Teflon-coated, fiberglass mat
Weight	0.07kg/mat
Mat Type	Solid

solid mat 40x40cm

non stick matts close up

solid mats 40x40cm

FDA-APPROVED FOOD-SAFE NON-STICK MATS TEMPERATURE RESISTANT, WATER REPELLENT, & 100% NON-STICK REUSABLE, DURABLE, & EASY TO CLEAN

Total Mat Area	0.2m²/tray
Dimensions	40cm x 40cm
Mesh Spacing	4mm x 4mm
Material	Premium non-stick, FDA-approved food-safe, Teflon-coated, fiberglass mat
Weight	0.09kg/mat
Mat Type	Mesh

mesh mats 40x40cm

mesh mats close up

mesh mat curled

FDA-APPROVED FOOD-SAFE NON-STICK MATS
TEMPERATURE RESISTANT, WATER REPELLENT, & 100% NON-STICK REUSABLE, DURABLE, & EASY TO CLEAN

Total Mat Area	0.4m²/tray
Dimensions	50cm x 85cm
Material	Premium non-stick, FDA-approved food-safe, Teflon-coated, fiberglass mat
Weight	0.07kg/mat
Mat Type	Solid

solid mats 85x50cm

non stick matts close up

solid mats curled

FDA-APPROVED FOOD-SAFE NON-STICK MATS TEMPERATURE RESISTANT, WATER REPELLENT, & 100% NON-STICK REUSABLE, DURABLE, & EASY TO CLEAN

Total Mat Area	0.4m²/tray
Dimensions	50cm x 85cm
Mesh Spacing	4mm x 4mm
Material	Premium non-stick, FDA-approved food-safe, Teflon-coated, fiberglass mat
Weight	0.024kg/mat
Mat Type	Mesh

mesh mats 85 x 50cm

mesh mats close up

mesh mat curled

Industrial Dehydrator Analogue control

CONTROL & EXHAUST

Analogue controls offer a simple push button operation, easy for anyone to use. Temperature controls are still shown and programmed on a digital display to ensure accuracy of operation. Our exhaust valve allows you to throttle the amount of air that is recirculated back into the chamber from the previous cycle.

HEATING COILS

We produce industrial-grade stainless steel heating coils.
Extremely robust, these heating coils are wrapped in fins positioned along the entire length of the coil itself. These fins help to radiate the heat into the passing air, making them much more efficient than standard heating elements.

Industrial Dehydrator heating Coils

AIR DISTRIBUTION Panel Technology

Our units are fitted with dynamic airflow panels which have been lasered for precision. These panels create back pressure from the heating chamber and redistribute the hot dry air consistently across every tray giving you even drying throughout the chamber.

Industrial Dehydrator Air Distribution

Control Panle

Control Panle

Trolley options & specs

Model	IDUTC-15
Dimensions: (W x H x D)	930 x 1450 x 645 mm
Layers:	15
Layer Spacing	80 mm
Number of Trays	30
Tray area	8.8 m²

Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.

15 layer cart

Model	IDUTC-18
Dimensions: (W x H x D)	930 x 1450 x 645 mm
Layers:	18
Layer Spacing	67 mm
Number of Trays	36
Tray area	10.6 m²

Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.

18 layer cart

Model	IDUTC-20
Dimensions: (W x H x D)	930 x 1450 x 645 mm
Layers:	20
Layer Spacing	60 mm
Number of Trays	40
Tray area	11.8 m²

Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.

15 layer cart

Model	IDUTC-25
Dimensions: (W x H x D)	930 x 1450 x 645 mm
Layers:	25
Layer Spacing	48 mm
Number of Trays	50
Tray area	14.7 m²

Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.

25 layer cart

Model	IDUTC-30
Dimensions: (W x H x D)	930 x 1450 x 645 mm
Layers:	30
Layer Spacing	40 mm
Number of Trays	60
Tray area	17.7 m²

Please allow 3 cm above the thickest product for optimal airflow and dehydration. Made from industrial 304 Food-Grade Stainless Steel and comes with a built in drip tray.

30 layer cart

Tray Types & specs

Model	IDUT-FPT
Dimensions: (W x H x D)	46 x 64 cm x (2.5-4.5cm)
Mesh Spacing	15
Tray area	0.3 m²

Industrial Dehydrator Flat Pan Tray

Model	IDUT-MT
Dimensions: (W x H x D)	46 x 64 x 1cm
Mesh Spacing	12 x 12mm
Tray area	0.3 m²

fine mesh tray

Model	IDUT-PPT
Dimensions: (W x H x D)	46 x 64 x 2.5cm
Mesh Spacing	8mm Ø
Tray area	0.3 m²

Industrial Dehydrator perforated Pan Tray

Model	IDUT-FMT
Dimensions: (W x H x D)	46 x 64 x 1cm
Mesh Spacing	2 x 2mm
Tray area	0.3 m²

fine mesh tray

Commercial Warranty

Product warrants to the ORIGINAL RETAIL PURCHASER of this product that if it is purchased through an AUTHORISED COMMERCIAL DEHYDRATORS AUSTRALIA RETAILER, or directly from the factory and operated in accordance with the printed instruction accompanying it, then for a period of 3 years from the date of purchase the product shall be free from defects in material and workmanship.

To obtain warranty service, an original or copy of the sales receipt from the original authorised retailer is required. THEREFORE, YOU SHOULD RETAIN YOUR SALES SLIP OR INVOICE.

If your commercial dehydrator needs warranty service, please contact our Technical Support Department. In most cases, technical problems can be corrected over the phone. Tech support can be reached via telephone or email

Tel: (61) 7 3184 4335
Email: customer.care@commercialdehydrators.com.au

Shipping & Returns

Domestic: Shipping timelines are based on inventory and stock locations. To check shipping timelines you may visit the individual product page located just above the “add to cart” button. Items in local stock will ship next business day and will take somewhere between 7-10 days depending on location and size of the freight.

‍International: We have regional distribution warehouses located across the globe. Because of our global operation, we get inexpensive international shipping rates. Some countries we can deliver all the way to the end delivery address and others we may only be able to deliver to customs entry point.

Frequently Asked Questions

Commercial warranty

Product warrants to the ORIGINAL RETAIL PURCHASER of this product that if it is purchased through an AUTHORISED COMMERCIAL DEHYDRATORS CANADA RETAILER, or directly from the factory and operated in accordance with the printed instruction accompanying it, then for a period of 3 years from the date of purchase the product shall be free from defects in material and workmanship.

To obtain warranty service, an original or copy of the sales receipt from the original authorised retailer is required. THEREFORE, YOU SHOULD RETAIN YOUR SALES SLIP OR INVOICE.

If your commercial dehydrator needs warranty service, please contact our Technical Support Department. In most cases, technical problems can be corrected over the phone. Tech support can be reached via telephone or email

Tel: (604) 800-7466
Email: customer.care@commercialdehydrators.ca

Shipping & Returns

Shipping: Standard Domestic Shipping is included in your Industrial Unit price. These units are made to order and will take around 10-12 weeks to your door.

Returns: As these units are built to order and often have specific modifications to an individual customer, returns are not accepted unless due to manufacturing issues that are unable to be resolved from a technician servicing.

Frequently Asked Questions

Accessories

Do you also need?

Main Product Image

Industrial Dehydrators

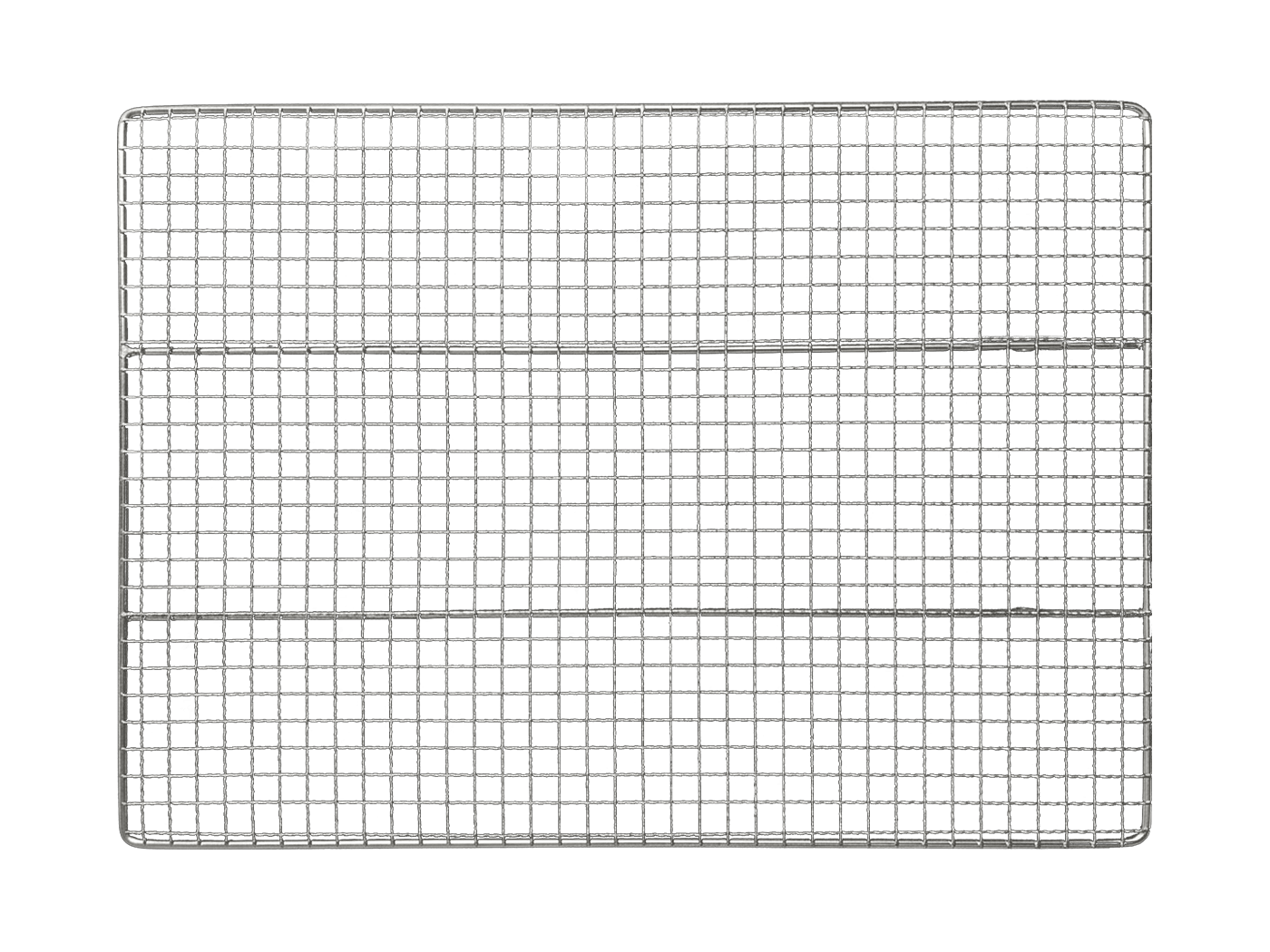

46 x 64cm Industrial Mesh Tray
